Hydraulic Breaker Hammer with 100mm Chisel Diameters 3/4 inch Hosepipe and 150-170kg/cm2 Operating Pressure for 15 Tons Excavator

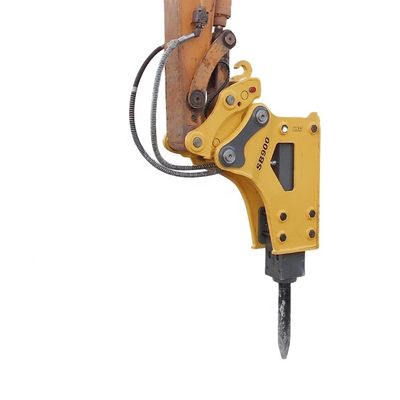

Büyük resim : Hydraulic Breaker Hammer with 100mm Chisel Diameters 3/4 inch Hosepipe and 150-170kg/cm2 Operating Pressure for 15 Tons Excavator

Ürün ayrıntıları:

Menşe yeri:	Shandong, Çin
Marka adı:	jisan

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	$6,900

İletişim

Detaylı ürün tanımı

Ağırlık:	500 kg	Uygun ekskavatör:	11-16 ton
Keski çapları:	100 mm	Hosepipe çapı:	3/4 inç
İşletme baskısı:	150-170Kg/cm2	Etki oranı:	400-700bpm
Çekirdek bileşenler:	Basınçlı gemi	Uzunluk:	Oem
Akış hızı:	80-120 L/Dakika	Darbe sistemi:	Hidrolik + Azot
Isıl işlem:	Geliştirilmiş direnç	Malzeme:	Ağır Hizmet Çeliği
Gürültü seviyesi:	Düşük	Bakım:	Kolay
Üretim teknolojisi:	Güney Kore
Vurgulamak:	100mm Chisel Diameters Hydraulic Breaker , 3/4 inch Hosepipe Hydraulic Hammer , 150-170kg/cm2 Operating Pressure Hydraulic Rock Breaker

Hydraulic Hammer Breaker 15 Tons Excavator

JISAN Hydraulic Breaker has 3 main types:

Silenced Hydraulic Breaker:

Low noise, saving energy and protecting environment.

Top Type Hydraulic Breaker:

Applied to special operation that in large elevation angle.

Side Type Hydraulic Breaker:

Versatile application including rock broken, paving road, building demolition etc.

Specification

ITEM/MODEL	WEIGHT(kg)	LENGTH(mm)	PRESSURE(kg/cm2)	FLUX(L/min)	RATE(bmp)	HOSE(inch)	CHISEL(mm)	SUIT(ton)
JSB200S	90/110	1100	90-120	15-25	700-1200	1/2	45/53	1.2-3.0
JSB400S	320	1347	110-140	25-45	500-900	1/2	68/70	3.0-5.5
JSB600S	380	1528	110-160	30-45	500-800	1/2	75	4.0-7.0
JSB800S	510	1920	120-170	45-85	400-700	3/4	85	7.0-14
JSB900S	765	2260	150-170	80-120	400-700	3/4	100	11-16
JSB1600S	1668	2695	160-180	120-160	400-700	1	135	19-26
JSB1900S	1805	2810	160-180	130-170	400-600	1	140	19-26
JSB3500S	2700	3152	160-180	170-220	250-400	1	155	28-40
JSB4500S	2755	3310	160-180	200-300	250-350	1¼	165	36-45
JSB5000S	3910	3400	160-180	210-290	200-350	1¼	175	40-55
JSB5500S	4135	3400	180-220	220-300	200-250	1¼	185	50-60
JSB6500S	4650	3420	180-220	230-320	180-200	1¼	195	55-65
JSB7000S	5860	3700	190-230	360-450	120-200	1¼	210	65-100

How to choose breaker model, please click here.

Feature Details

Selected raw material - high quality heavy duty wear resistant steel.
Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
The device can adjust the flow from excavator and power source, so it can adjust the impact force and beat frequency according to different working situation.
High-quality and durable wear parts, longer use, easy maintenance.
Strong "hydraulic + nitrogen" impact system, increase stability.
Advanced manufacturing facilities and technology, introduced from South Korea.
High energy and impact frequency, High-performance optimized hydraulic unit.

Applications

If you are interested, please click here.

Packing & Shipping

1. Inner is stretch film, outside is export wooden case or as customer's request.

2. The standard free spare parts: two Chisels, two hoses, one set of repair tools with tool box, one Nitrogen bottle, one Nitrogen pressure gauge and one brochure.

Why Choose Jisan Heavy Industry

JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience, specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
Main Advantages of JISAN Hydraulic Breaker:
- Korea made cylinder
- NOK oil seal, Oil seal durability design
- Low noisy. Full-closed housing to protect the main body
- Strong impact
- Longer lifetime of usage
