20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer

20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer
20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer

Büyük resim :  20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer

Ürün ayrıntıları:
Menşe yeri: Shandong, Çin
Marka adı: JISAN
Sertifika: CE
Model numarası: Özel yapılmış
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: $9,852
Detaylı ürün tanımı
Ağırlık: 1840 kilo Uygun ekskavatör: 1-100 Ton
Çubuk çapı: 40-175 mm Hosepipe çapı: 0,5-1,25 inç
Etki oranı: 250-700 Bpm Çekirdek bileşenler: Basınçlı gemi
Uzunluk: Özel yapılmış Basınç: 90-220bar
Akış: 15-320 litre/dakika Keski çapı: 40-205mm
Çalışma ağırlığı: 50kg-10.000kg Motor hızı: Belirtildi
Yağ keçesi: NOK Silindir kökeni: Kore
Konut türü: Tam kapalı
Vurgulamak:

12 Months Warranty Hydraulic Breaker

,

20 Ton Rock Breaker

,

Excavator Compatible Hydraulic Hammer

20 Ton Hydraulic Breaker Hammer for Excavators
20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 0 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 1
Product Specifications
Item/Model Weight (kg) Length (mm) Pressure (bar) Flow (lpm) Rate (bmp) Hose (inch) Chisel (mm) Suit (ton)
JSB100100100090-12015-25900-14001/2400.8-2.0
JSB200167130090-12020-40700-12001/2451.2-3.0
JSB300194140090-12025-50600-11001/2532.5-4.5
JSB4003631700110-14040-70500-9001/268/704-7
JSB6004501750110-16050-90500-8001/2756-9
JSB8007302100120-17060-100400-7003/4857-14
JSB9009702400150-17080-120400-7003/410011-16
JSB160019502700160-180120-160400-700113519-26
JSB190020502860160-180130-170400-600114019-26
JSB350030003100160-180170-220250-400115528-40
JSB450033003286160-180200-300250-3501 ¼16536-45
JSB500042503800160-180210-290200-3501 ¼17540-55
JSB500049003700180-220220-300200-2501 ¼18550-60
JSB600054004200200-240230-320150-2001 ¼19555-65
JSB650074004300200-240320-490150-2001 ¼20565-100
Product Features
20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 2 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer 3
The excavator hydraulic breaker is a high-performance front-end attachment designed for heavy-duty applications. This robust tool features:
  • High strength construction for maximum durability
  • Powerful impact force for efficient rock breaking
  • Compact design for improved maneuverability
  • Versatile applications including concrete demolition, mining, and rescue operations
  • Advanced features like self-lubricating systems and vibration damping
  • Compatible with carriers from 50kg to over 10,000kg
Safety Operation Guidelines
  1. Maintain proper positioning for effective breaking force
  2. Avoid excessive positioning that may cause machine instability
  3. Prevent transmission of vibrations to machine tracks
  4. Align boom force direction with the rod for optimal performance
  5. Never use breaker rod to move rocks - use designated stone claws
  6. Avoid sweeping debris with the breaker to prevent damage
  7. Do not operate when components are submerged in water/mud
  8. Prevent breaker from falling onto rocks
  9. Avoid operating at full cylinder extension/retraction
  10. Never use breaker for lifting operations
Technical Advantages
  • Korea-made cylinder for superior quality
  • NOK oil seals with durability design
  • Low-noise operation with full-closed housing protection
  • Powerful impact force for efficient breaking
  • Extended service life through robust construction

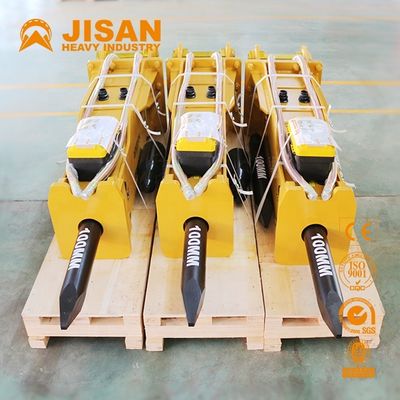

Packaging Details
Standard packaging includes stretch film inner wrapping with export wooden case exterior. Package includes:
  • Two chisels
  • Two hoses
  • Complete repair tool set with toolbox
  • Nitrogen bottle
